Sound

Audio playback for sound effects and music, with mix buses, ducking and positional sound.

Header: #include <asw/modules/sound.h>
Namespace: asw::sound

Runs in your browser. Keyboard and mouse recommended.Open in new tab ↗

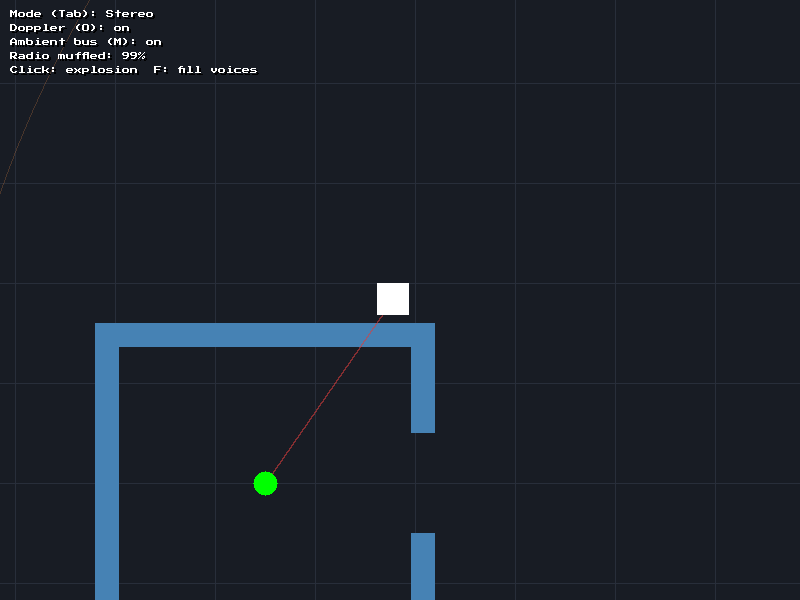

From the sound example.

The sound module has 32 voices for sound effects and one track for music. asw::core::init() initializes the module, and asw::core::update() updates fades, ducking and positional sounds each frame.

Mixer

get_mixer

MIX_Mixer* get_mixer();

Get the SDL_mixer device. Returns nullptr if the sound module is not initialized.

Types

Bus Enum

enum class Bus : uint8_t {
  Sfx,
  Music,
  Ambient,
  Ui,
  Voice,
  Count,
};

Mix buses. Each sound plays on one bus. Each bus has its own volume and can be ducked. Count is the number of buses. Do not play sounds on it.

Rolloff Enum

enum class Rolloff : uint8_t {
  Linear,
  Inverse,
  InverseSquare,
};

How volume decreases with distance for positional sounds.

Value	Description
Linear	Straight line from full volume at min_distance to silent at max_distance
Inverse	Sounds natural. Loud when near, with a long quiet tail
InverseSquare	Like Inverse, but decreases faster

SpatialMode Enum

enum class SpatialMode : uint8_t {
  Stereo,
  Surround,
};

How positional sounds are put on the speakers.

Value	Description
Stereo	Left/right panning. Best for headphones and side-on games. This is the default
Surround	SDL_mixer 3D positioning, which also uses rear and side speakers. The world is top-down: up the screen is in front, down the screen is behind

Attenuation

struct Attenuation;

Distance settings for positional sounds, in world units (pixels).

Field	Type	Default	Description
min_distance	float	100.0	Full volume at this distance or nearer
max_distance	float	1000.0	Silent at this distance or farther
rolloff	Rolloff	Inverse	Shape of the decrease between the two distances

PlayOptions

struct PlayOptions;

Options for playing a sound.

Field	Type	Default	Description
volume	float	1.0	Playback volume (0.0 - 1.0)
pan	float	0.0	Panning (-1.0 left - 1.0 right). Positional sounds ignore it
loop	bool	false	Loop forever
pitch	float	1.0	Playback speed and pitch. 2.0 is one octave up
pitch_variation	float	0.0	Random pitch change for each play, as a fraction. 0.05 picks a value from 0.95x to 1.05x. Use it to make repeated sounds (footsteps, hits) less robotic
volume_variation	float	0.0	Random volume change for each play, as a fraction
bus	Bus	Sfx	The bus to play on
priority	int	0	When all voices are busy, a new sound replaces the quietest voice that has the same or lower priority. If there is no such voice, the new sound is not played
fade_in_s	float	0.0	Fade-in time in seconds
attenuation	Attenuation	{}	Distance settings for positional sounds

SoundHandle

class SoundHandle;

A handle to a playing sound. Use it to change the sound while it plays. Handles are cheap to copy. When the sound ends, or its voice is given to a different sound, the handle becomes stale. All calls on a stale handle do nothing. A default-constructed handle refers to no sound.

Method	Description
bool is_playing() const	true while the sound has not ended (playing or paused)
void stop(float fade_out_s = 0.0F) const	Stop the sound, with an optional fade-out in seconds
void pause() const	Pause the sound
void resume() const	Resume a paused sound
void set_volume(float volume) const	Set the volume (0.0 - 1.0), before bus and distance
void set_pitch(float pitch) const	Set the playback speed and pitch. 1.0 is normal
void set_pan(float pan) const	Set the panning (-1.0 - 1.0). A positional sound becomes non-positional
void set_position(const Vec2<float>& position) const	Set the world position. The sound becomes positional
void set_velocity(const Vec2<float>& velocity) const	Set the velocity in world units per second, for doppler pitch shift
void set_occlusion(float amount) const	Muffle the sound, as if heard through a wall. 0.0 is clear, 1.0 is fully muffled
void set_attenuation(const Attenuation& attenuation) const	Change the distance settings

Sound Effects

play

SoundHandle play(const asw::Sample& sample,
                 float volume = 1.0F,
                 float pan = 0.0F,
                 bool loop = false);
SoundHandle play(const asw::Sample& sample, const PlayOptions& options);

Play a sound effect sample on the Sfx bus, or with the given options. Returns a handle to the sound. The handle is stale if the sound could not be played.

Parameter	Type	Default	Description
sample	const asw::Sample&		The sample to play
volume	float	1.0	Playback volume (0.0 - 1.0)
pan	float	0.0	Panning: -1.0 (full left), 0.0 (center), 1.0 (full right)
loop	bool	false	Infinite loop when true
options	const PlayOptions&		How to play the sample. See PlayOptions

play_positional

SoundHandle play_positional(const asw::Sample& sample,
                            const Vec2<float>& position,
                            const PlayOptions& options = {});

Play a sample at a point in the world. The sound is panned, faded and pitch-shifted relative to the listener, and continues to update while it plays. A one-shot sound that is out of hearing range (farther than options.attenuation.max_distance) is not played, and the handle is stale.

play_at

SoundHandle play_at(const asw::Sample& sample, float x, float volume = 1.0F);
SoundHandle play_at(const asw::Sample& sample, float x, const PlayOptions& options);

Play a sample panned by its horizontal position on the screen. x is in logical screen coordinates. Sounds pan to the side they are on. They fade out when they are off screen and are silent one full screen width past the edge. Use this for simple games that do not have a listener.

The PlayOptions version also takes pitch, variation, bus, priority and the rest. options.volume is the volume before the fade, and options.pan is replaced by the screen position. The pan is set once when the sound starts.

asw::sound::PlayOptions shot;
shot.pitch_variation = 0.08F;
shot.priority = 2;
asw::sound::play_at(gunshot, enemy.position.x, shot);

Listener and Spatial Settings

set_listener

void set_listener(const Vec2<float>& position,
                  const Vec2<float>& velocity = { 0.0F, 0.0F });

Set the listener position in the world, usually the player or the center of the camera. velocity is in world units per second and is used for doppler.

get_listener

Vec2<float> get_listener();

Get the listener position.

set_spatial_mode

void set_spatial_mode(SpatialMode mode);

Set how positional sounds are put on the speakers. The default is SpatialMode::Stereo.

set_doppler

void set_doppler(float factor, float speed_of_sound = 3000.0F);

Set the strength of the doppler pitch shift. A factor of 0 turns doppler off, and 1 is realistic (default). speed_of_sound is in world units per second. A lower value makes the effect stronger.

Buses and Ducking

set_bus_volume

void set_bus_volume(Bus bus, float volume);

Set the volume multiplier of a bus. Range: 0.0 - 1.0.

get_bus_volume

float get_bus_volume(Bus bus);

Get the volume multiplier of a bus.

duck

void duck(Bus bus, float gain, float hold_s, float fade_s = 0.2F);

Decrease the volume of a bus for some time. For example, lower the music during dialogue, or lower all other sounds during a big explosion. If ducks overlap, the lowest level and the longest hold are used.

Parameter	Type	Default	Description
bus	Bus		The bus to duck
gain	float		The level while ducked (0.0 - 1.0)
hold_s	float		Seconds to stay ducked
fade_s	float	0.2	Seconds to fade down and back up

Music

Music plays on the Music bus and always loops.

play_music

void play_music(const asw::Music& sample, float volume = 1.0F, float fade_in_s = 0.0F);

Play a music track.

Parameter	Type	Default	Description
sample	const asw::Music&		The music to play
volume	float	1.0	Playback volume (0.0 - 1.0)
fade_in_s	float	0.0	Fade-in duration in seconds

stop_music

void stop_music(float fade_out_s = 0.0F);

Stop the currently playing music. Set fade_out_s to fade out over that number of seconds.

pause_music

void pause_music();

Pause the currently playing music.

resume_music

void resume_music();

Resume paused music.

is_music_playing

bool is_music_playing();

Returns true if music is currently playing.

is_music_paused

bool is_music_paused();

Returns true if music is currently paused.

Volume Control

set_master_volume

void set_master_volume(float volume);

Set the master volume multiplier (affects all audio). Range: 0.0 - 1.0.

set_sfx_volume

void set_sfx_volume(float volume);

Set the SFX volume multiplier. This is the same as set_bus_volume(Bus::Sfx, volume). Range: 0.0 - 1.0.

set_music_volume

void set_music_volume(float volume);

Set the music volume multiplier. This is the same as set_bus_volume(Bus::Music, volume). Range: 0.0 - 1.0.

get_master_volume

float get_master_volume();

Get the current master volume.

get_sfx_volume

float get_sfx_volume();

Get the current SFX volume.

get_music_volume

float get_music_volume();

Get the current music volume.

Example

auto sfx = asw::assets::load_sample("explosion.wav");
auto step = asw::assets::load_sample("step.wav");
auto engine = asw::assets::load_sample("engine.wav");
auto bgm = asw::assets::load_music("theme.ogg");

// Play sound effect
asw::sound::play(sfx, 0.8f);

// Play with options: random pitch and volume for each footstep
asw::sound::PlayOptions options;
options.pitch_variation = 0.05f;
options.volume_variation = 0.1f;
asw::sound::play(step, options);

// Positional sound that follows an object
asw::sound::PlayOptions loop_options;
loop_options.loop = true;
auto handle = asw::sound::play_positional(engine, car_position, loop_options);

// Each update
asw::sound::set_listener(player_position, player_velocity);
handle.set_position(car_position);
handle.set_velocity(car_velocity);

// Stop it with a fade out
handle.stop(0.5f);

// Play music with fade in (2 seconds)
asw::sound::play_music(bgm, 0.5f, 2.0f);

// Lower the music for 1 second under the explosion
asw::sound::duck(asw::sound::Bus::Music, 0.3f, 1.0f);

// Fade out music (1 second)
asw::sound::stop_music(1.0f);

// Volume controls
asw::sound::set_master_volume(0.7f);
asw::sound::set_bus_volume(asw::sound::Bus::Ambient, 0.5f);
asw::sound::set_music_volume(0.5f);
